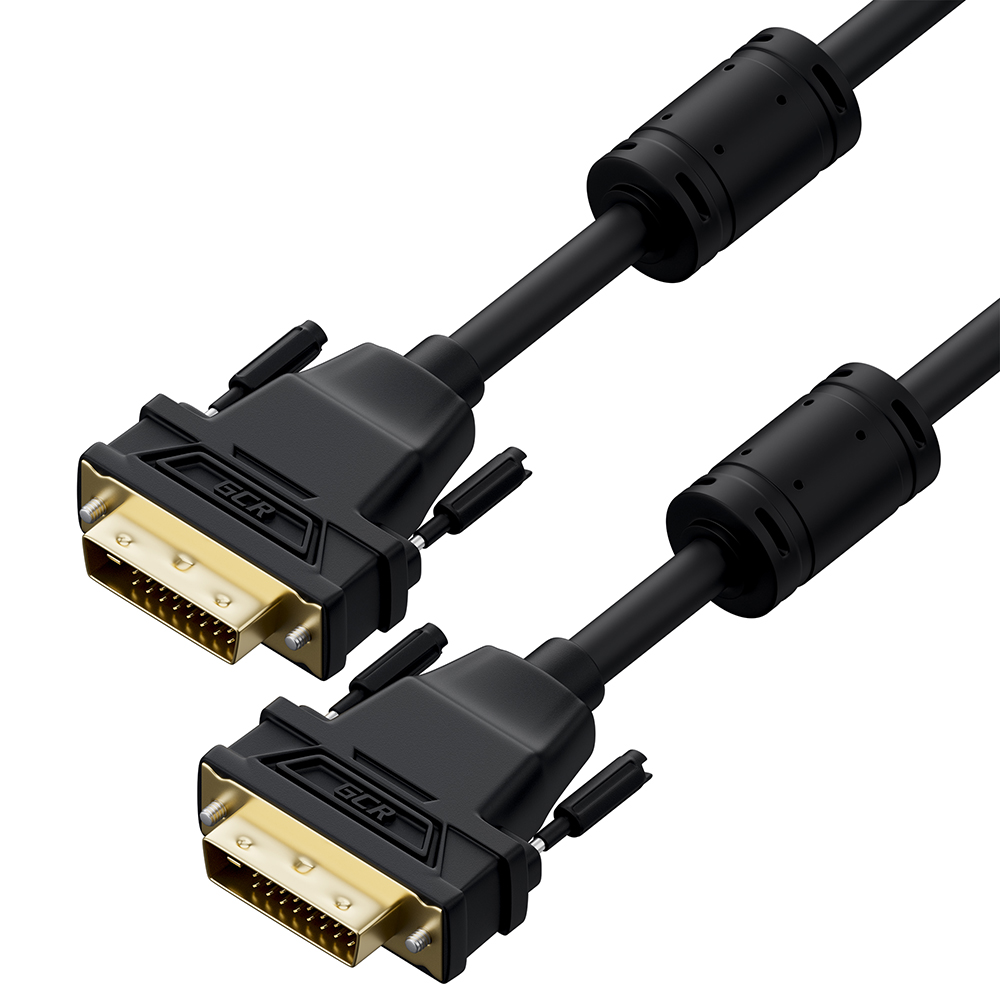

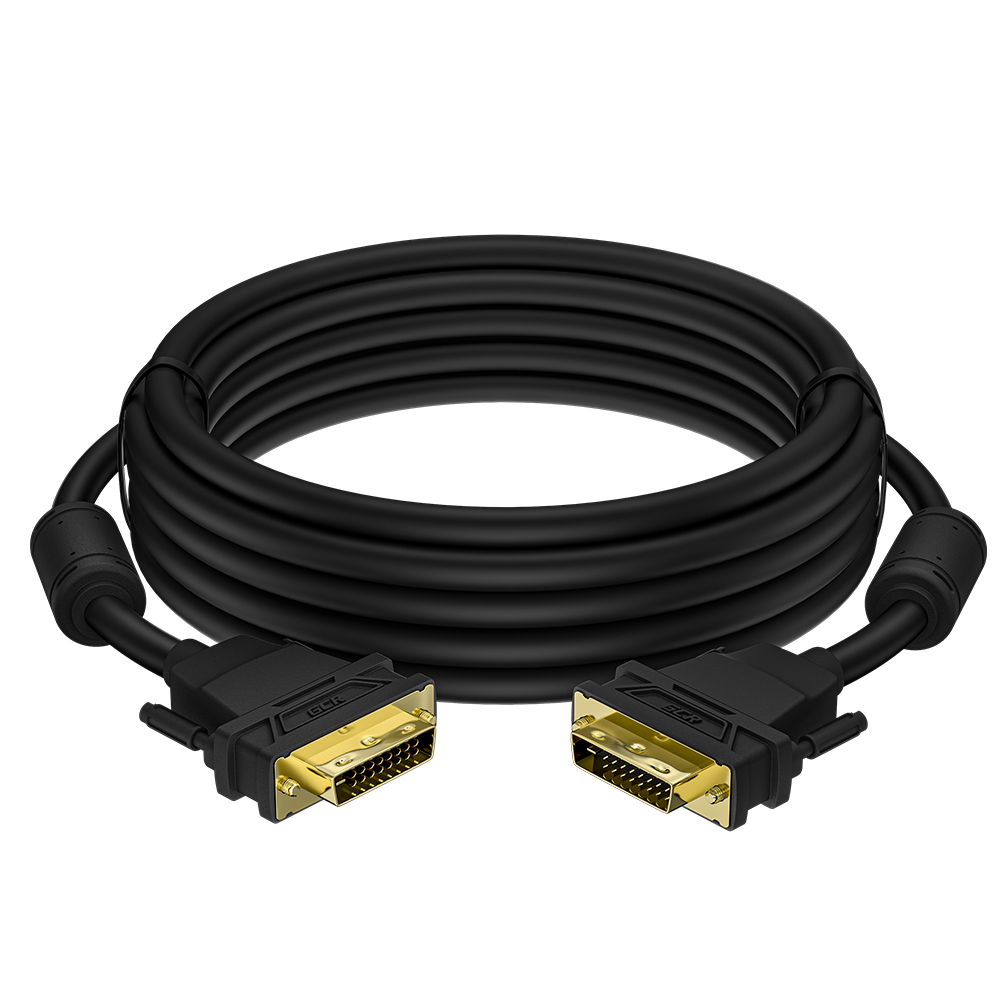

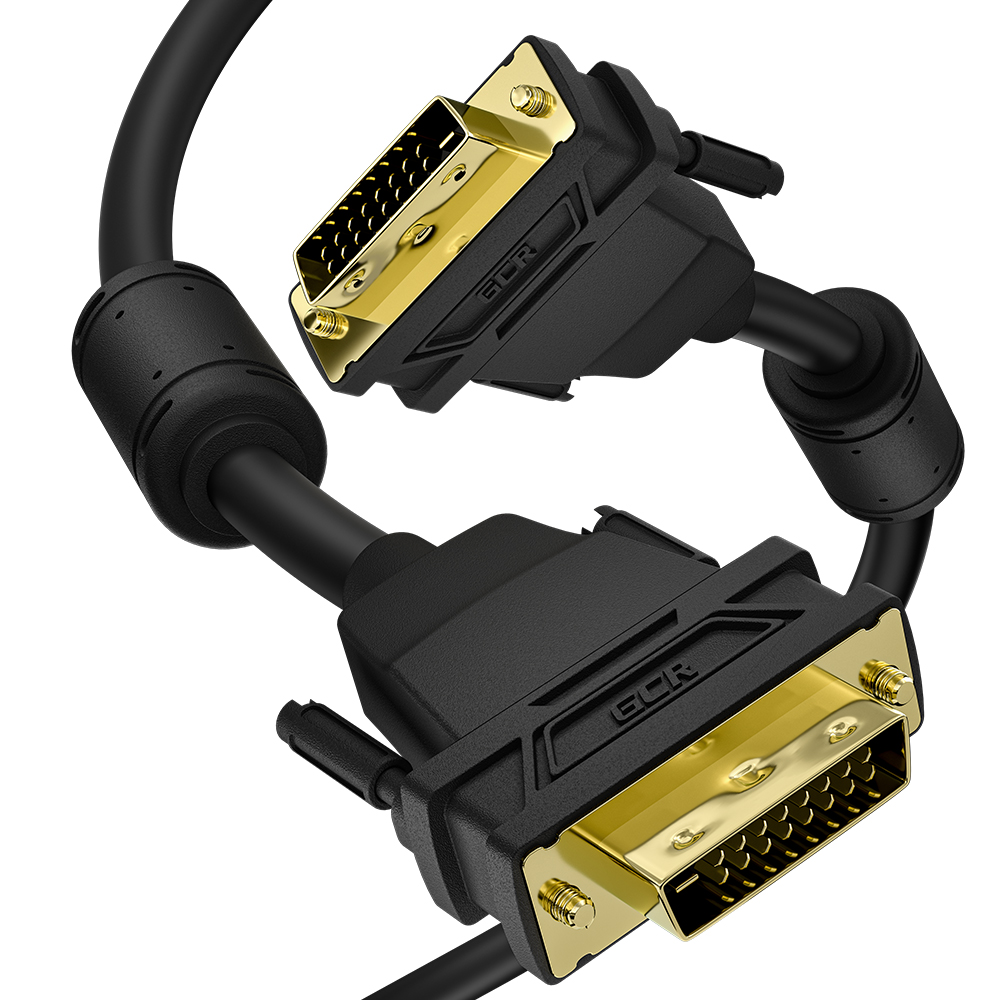

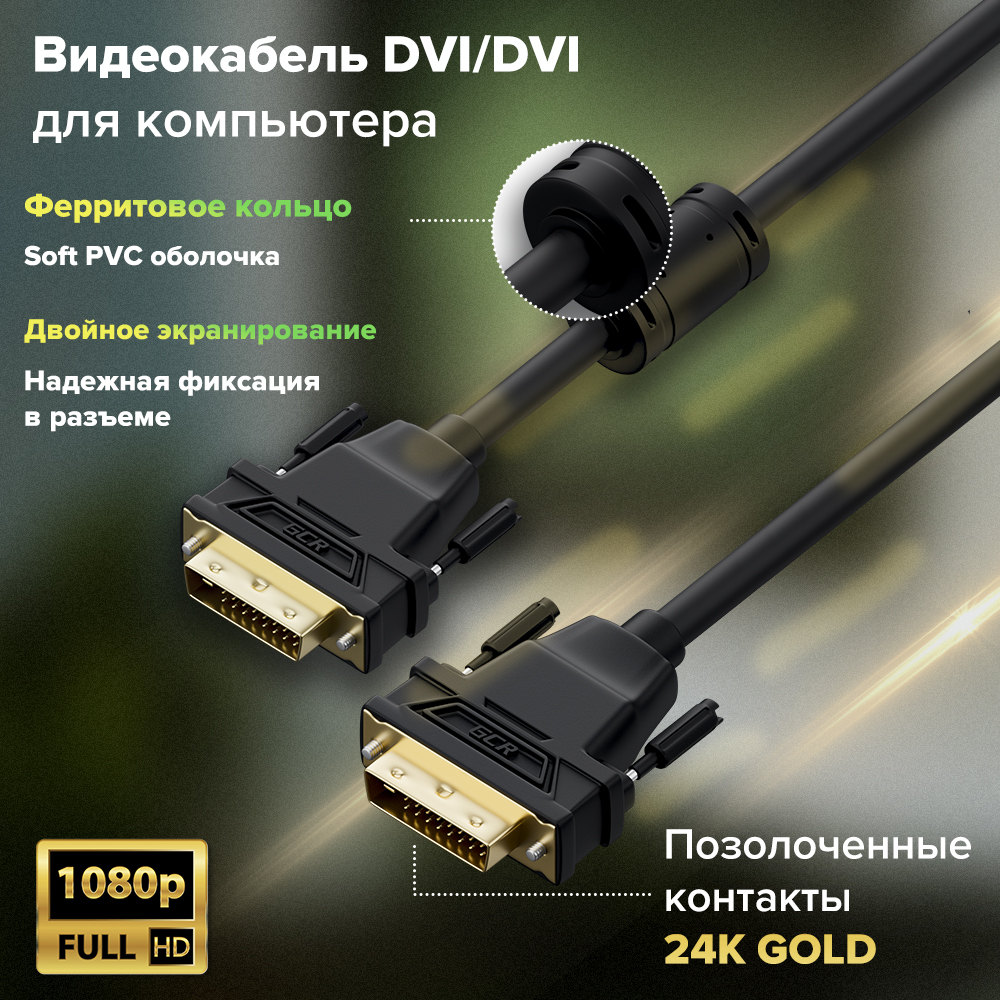

GCR PRO Cable PROF DVI-D Dual Link M/M Ferrites 3X shielding
Article:
GCR-54235
Length, in meters:
| Article | GCR-54235 |
| Model | GCR-DVID2 |
| Type | DVI-D cable |
| Length, in meters | 5 |
| Color | black |
| Cable shape | round |
| Jacket material | PVC |
| Connector material | gold |
| Conductor material | oxygen-free copper |
| Wire AWG | 28 |
| Connector A | DVI-D M |
| Connector B | DVI-D M |
| Ferrite rings | yes |
| Peculiarity | shielding foil |
| Brand | GCR |
The DVI-D / DVI-D bidirectional cable adapter is used to transmit high-resolution digital video signals. It can be used to connect a computer, DVD player, or game console to a monitor, digital TV, or projector with a DVI connector.
Features:
Supports Full HD resolutions
Data transfer speed up to 5.1 Gbps
Double shielding and ferrite filters
Convenient cable length
Cable lock for better connection
Dual link mode doubles the interface bandwidth and allows for resolutions up to 1920x1080 60Hz.
The cable is made of high-quality materials. The conductor is made of high-purity oxygen-free copper, a material with excellent signal conductivity. Double shielding and ferrite filters provide maximum protection against external electrical interference, ensuring that the video signal is transmitted in the best possible quality.
The DVI adapter plug is equipped with screw locks. Gold-plated connectors are necessary for high-performance connection without loss of digital video transmission quality.
Specifications:
Connectors: DVI 24+1 / DVI 24+1
Connectors/contacts: 24K GOLD plated
Conductor material: oxygen-free copper
Data transmission conductor diameter: 28 AWG
5V power conductor diameter: 28 AWG
Data transfer rate up to 5.1 Gbps
Maximum resolution: 1920x1080 60Hz
Sheath type: RoHS PVC
Ferrite rings: yes
Features:
Supports Full HD resolutions
Data transfer speed up to 5.1 Gbps
Double shielding and ferrite filters
Convenient cable length
Cable lock for better connection
Dual link mode doubles the interface bandwidth and allows for resolutions up to 1920x1080 60Hz.
The cable is made of high-quality materials. The conductor is made of high-purity oxygen-free copper, a material with excellent signal conductivity. Double shielding and ferrite filters provide maximum protection against external electrical interference, ensuring that the video signal is transmitted in the best possible quality.
The DVI adapter plug is equipped with screw locks. Gold-plated connectors are necessary for high-performance connection without loss of digital video transmission quality.
Specifications:
Connectors: DVI 24+1 / DVI 24+1
Connectors/contacts: 24K GOLD plated
Conductor material: oxygen-free copper
Data transmission conductor diameter: 28 AWG
5V power conductor diameter: 28 AWG
Data transfer rate up to 5.1 Gbps
Maximum resolution: 1920x1080 60Hz
Sheath type: RoHS PVC
Ferrite rings: yes
