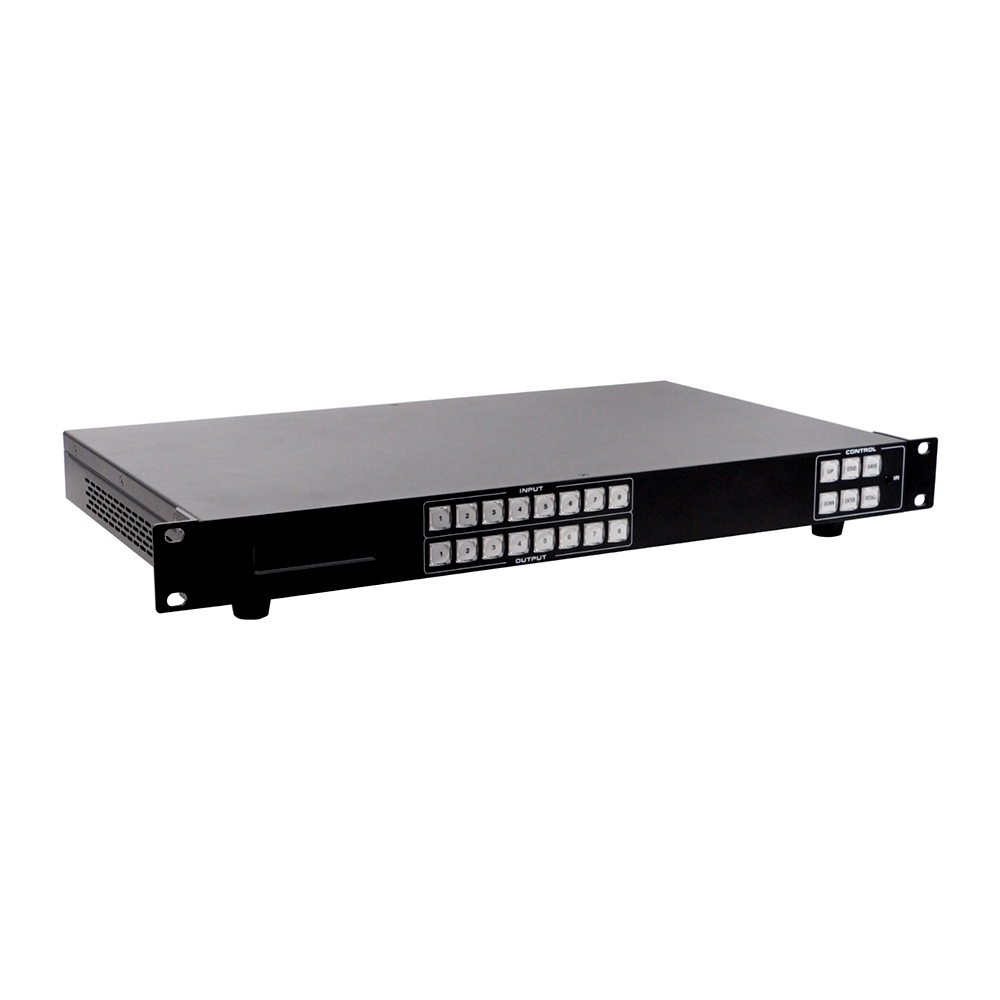

GCR PRO 8x8 HDMI Matrix Switch, 4K60Hz, HDCP 2.2, RS232 Support, EDID
Article:
GCR-54931
| Article | GCR-54931 |
| Model | GCR-VK808 |
| Type | HDMI switch Matrix |
| Color | black |
| Brand | GCR |
The matrix switch is designed to connect multiple digital HDMI signal sources to a TV, monitor or projector and allows you to broadcast any of the 8 signal sources to any of the 8 displays.
Features:
8 HDMI2.0 inputs and outputs with integrated 3.5mm audio signal for each input
Supports HDMI2.0, HDCP2.2
Resolution up to 4K 60 Hz
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
IR remote control
Supports intelligent EDID management
Supports RS-232 and TCP/IP control (web interface, application)
Plug & Play. Easy connection, no driver installation required
Aluminum housing
The 4K60 HDMI matrix switch with 8 HDMI2.0 inputs and 8 HDMI2.0 outputs allows you to enjoy high-quality images, supporting up to 4K resolution at 60 Hz. Apart from this, it also supports LPCM 7.1CH, Dolby True HD, Dolby Digital and DTS-HD Master Audio for crystal clear sound reproduction.
The matrix switch allows you to quickly and conveniently switch various devices, such as Blu-ray players, set-top boxes, home theater, game consoles, in various combinations.
You will be able to control the switch using an IR remote control, as well as via RS-232 and TCP/IP. The product also supports intelligent EDID management, including 8 output EDIDs, 15 internal EDIDs. This allows you to customize the device to your needs, including renaming inputs and outputs, scenes.
The switch is very convenient to use and will become an indispensable assistant for creating a high-quality multimedia system. You will be able to enjoy high-quality audio and video without interruptions and interruptions. By purchasing our product, you make the right choice in favor of quality and reliability.
Specifications:
Supported resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p at 24/30/50/60 Hz, 4K at 60 Hz
Input ports: 8 * HDMI, 1 * RS-232 (control), 1 * RJ-45 (control), 8 * 3.5mm audio
Output ports: 8 * HDMI, 1 * RS-232 (control), 8 * 3.5mm audio
IR remote control, Front button control, RS232, UDP
Power supply: 12V 2A
Size (mm) 440*260*44 (mm)
Equipment:
Matrix switch GCR-VK808 1 pc.
DC Power Adapter 12V 2A 1 pc.
Remote control 1 pc.
Server rack 2 pcs.
Instruction 1 pc.
Features:
8 HDMI2.0 inputs and outputs with integrated 3.5mm audio signal for each input
Supports HDMI2.0, HDCP2.2
Resolution up to 4K 60 Hz
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
IR remote control
Supports intelligent EDID management
Supports RS-232 and TCP/IP control (web interface, application)
Plug & Play. Easy connection, no driver installation required
Aluminum housing
The 4K60 HDMI matrix switch with 8 HDMI2.0 inputs and 8 HDMI2.0 outputs allows you to enjoy high-quality images, supporting up to 4K resolution at 60 Hz. Apart from this, it also supports LPCM 7.1CH, Dolby True HD, Dolby Digital and DTS-HD Master Audio for crystal clear sound reproduction.
The matrix switch allows you to quickly and conveniently switch various devices, such as Blu-ray players, set-top boxes, home theater, game consoles, in various combinations.
You will be able to control the switch using an IR remote control, as well as via RS-232 and TCP/IP. The product also supports intelligent EDID management, including 8 output EDIDs, 15 internal EDIDs. This allows you to customize the device to your needs, including renaming inputs and outputs, scenes.
The switch is very convenient to use and will become an indispensable assistant for creating a high-quality multimedia system. You will be able to enjoy high-quality audio and video without interruptions and interruptions. By purchasing our product, you make the right choice in favor of quality and reliability.
Specifications:
Supported resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p at 24/30/50/60 Hz, 4K at 60 Hz
Input ports: 8 * HDMI, 1 * RS-232 (control), 1 * RJ-45 (control), 8 * 3.5mm audio
Output ports: 8 * HDMI, 1 * RS-232 (control), 8 * 3.5mm audio
IR remote control, Front button control, RS232, UDP
Power supply: 12V 2A
Size (mm) 440*260*44 (mm)
Equipment:
Matrix switch GCR-VK808 1 pc.
DC Power Adapter 12V 2A 1 pc.
Remote control 1 pc.
Server rack 2 pcs.
Instruction 1 pc.
