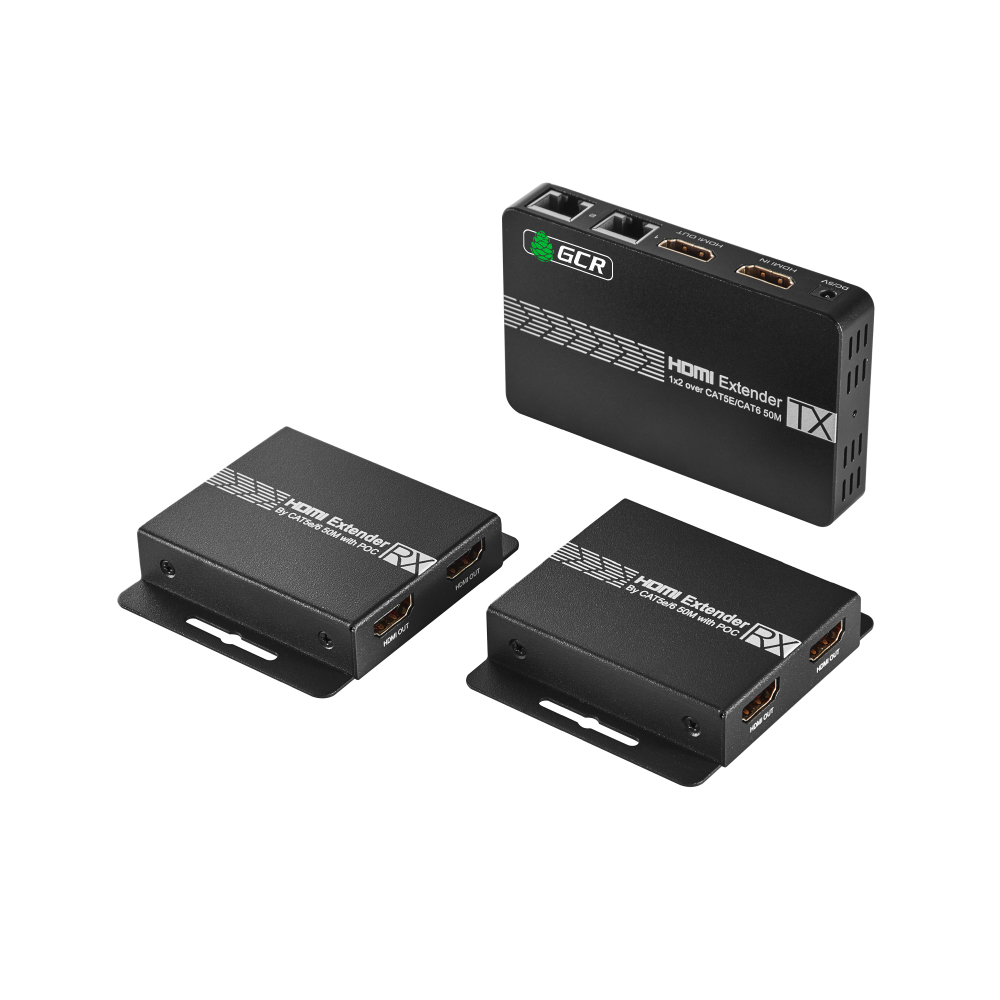

GCR PRO HDMI Splitter-Extender over twisted pair 1080P up to 50~60m, 1×2 up to 5 displays, transmitter + receivers (2×HDMI), support for IR, POC & EDID, Loop out

The splitter extension 1x2 over twisted pair is designed to split and transmit an HDMI signal over long distances to connect multiple monitors. The device converts the digital HDMI signal from a source such as Blu-ray, DVD, Smart TV, PS4, PS5, XBox game console, PC and laptop into a TX transmitter and transfer it via an Internet cable via an RX receiver to one or more screens.

Features:
HDMI splitter extension cable from one source to 5 displays simultaneously
1 HDMI receiver and 2 HDMI transmitters
EDID support. 9 different operating modes
Support LPCM 7.1CH, Dolby True HD, DTS-HD, Master Audio audio formats
FullHD 1080P High Definition Resolution
Plug&Play. Without require additional software installation.
Supports HDMI LOOP OUT input on TX to connect an additional monitor
The maximum signal transmission distance is 70 meters
Aluminum housing

The HDMI extension cable provides an excellent FullHD 1080P image at a distance of up to 50-70 meters, and the EDID switch will help you set up the perfect operation of the devices in 9 different modes. The devices are installed between the computer / game console and the monitor and connected using an HDMI cable and patch cord, allowing you to expand the distance from the signal source to the screen.
The device consists of 2 parts: a signal transmitter (TX) and a receiver (RX), which are equipped with LOOP OUT inputs, with which you can connect an additional screen or antenna. The extension cord does not require software installation or special configuration, it just connects and works.
Bidirectional IR control allows the set-top box to recognize commands from a remote display or control a remote display from the set-top box. To connect the remote control, use the IR extension cords supplied in the package.
The durable aluminum housing protects the internal parts and maintains the cooling of the extension cord, contributing to the rapid absorption and dissipation of heat.
The device requires a 220V connection to operate.
Attention! The extension cable does not include a patch cord and an HDMI cable.

Specifications:
TX: 1 x DC IN / 1x HDMI IN / 1 x HDMI OUT / 2 x RJ45 OUT / 1xIR OUT
RX: 1 x RJ45 IN / 1x IR IN / 2 x HDMI OUT
Cat5e/6 transmission range up to 50M, Cat6a up to 70M
The maximum clock frequency of TMDS is up to 148.5 MHz

Package:
HDMI Extension Cable (Transmitter + 2 receivers)
IR transmitter 1 pc.
IR receiver 2 pcs.
12V 2A Power adapter 1 pc.
Instruction 1 pc.
